QYJ-20 Chocolate conche refiner machine chocolate grinding machineQYJ-20 Chocolate conche refiner machine chocolate grinding machineQYJ-20 Chocolate conche refiner machine chocolate grinding machineQYJ-20 Chocolate conche refiner machine chocolate grinding machine

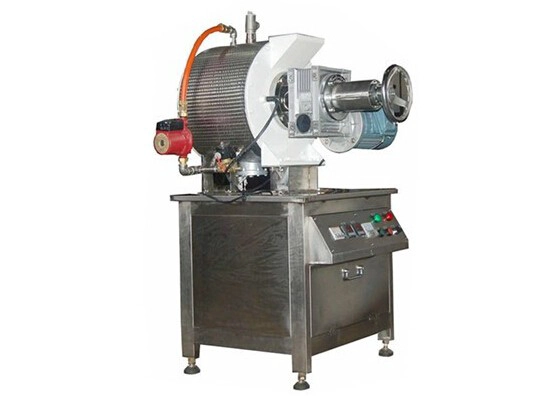

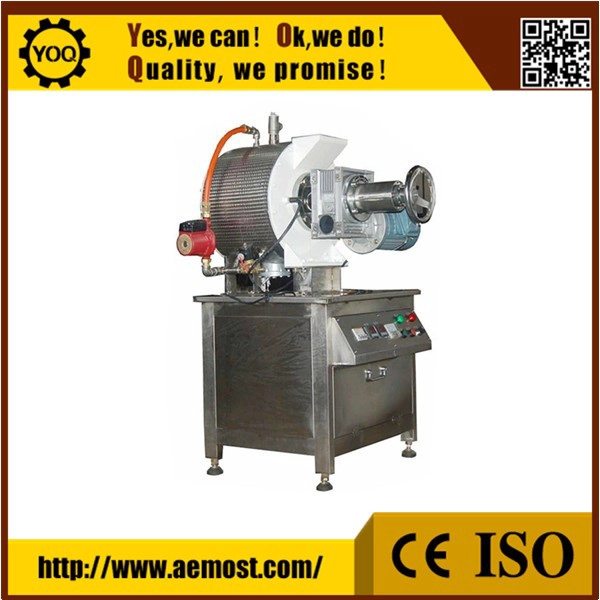

QYJ-20 Chocolate conche refiner machine chocolate grinding machine

  • Model:20L
  • Maximum capacity(L):20
  • Grinding fineness(micron):20-25
  • Main axle rotating speed(rpm):93
  • Grinding time(h):8-10
  • Main motor power(kw):1.5
  • Electrical heating power(kw):0.6
  • Weight(kg):295
  • Outside dimensions(mm):920*600*1110
  • Min.Order Quantity: 1 Set/Sets
  • Supply Ability: 50 Set/Sets per month
  • Port: Shanghai
  • Place Of Origin: Suzhou, China
  • Payment Terms: L/C,T/T,Western Union
  • The machine can be made UL standard

Technical Parameters:

Model

20L Chocolate Conche

Maximum capacity (L)

20

Grinding fitness (micron)

20-25

Main axle rotating speed (rpm)

93

Grinding time (h)

8-10

Main motor power (kw)

1.5

Electrical heating power (kw)

0.6

Weight (kg)

295

Outside dimensions (mm)

920*600*1110


Function:

Chocolate conche is used in fine grinding of chocolate mass, it is the main equipment in chocolate production line.


The outside material is full stainless steel. the whole machine is designed with double jacketed which allow cool water circulate, prevent the high temperature burned the chocolate.

QYJ 20 chocolate conche machine is easy to operate and move, and it does not take too much space. It is ideal machine for lab or small factory.

Packaging & Delivery:

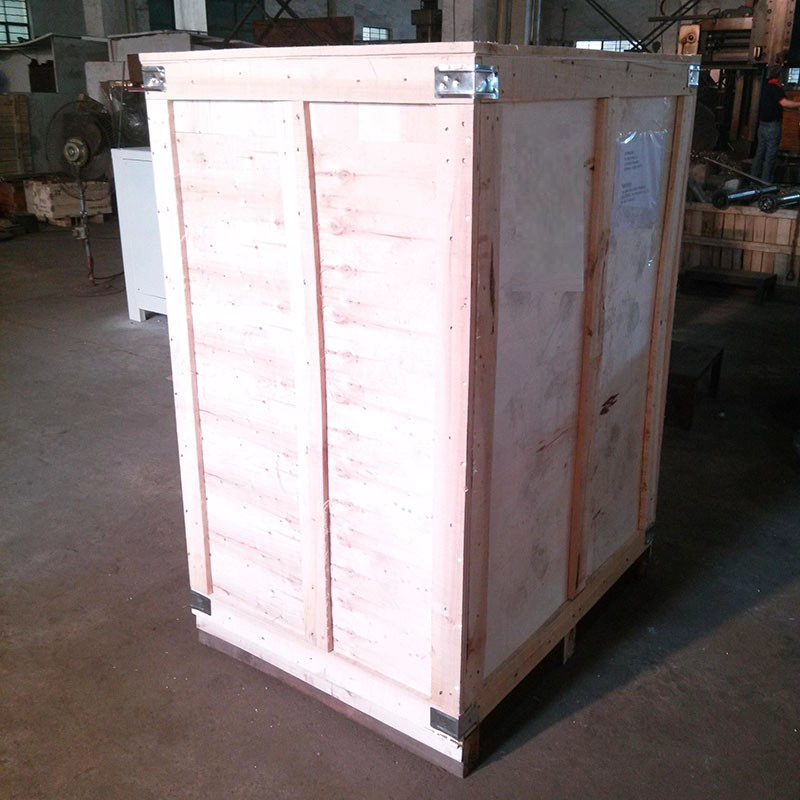

1. The machine will be packed in a wooden case, avoiding unexpected damage.
2. This machine will be shipped from Shanghai port.

Service:
1. Along with the separate machines, our company also has an ability to deliver integrated solutions for the manufacture of the chocolate product.
2. Engineers are available for traveling to the customer's site overseas, in order to launch and maintain machines, as well as to provide a team training at the customer's location.

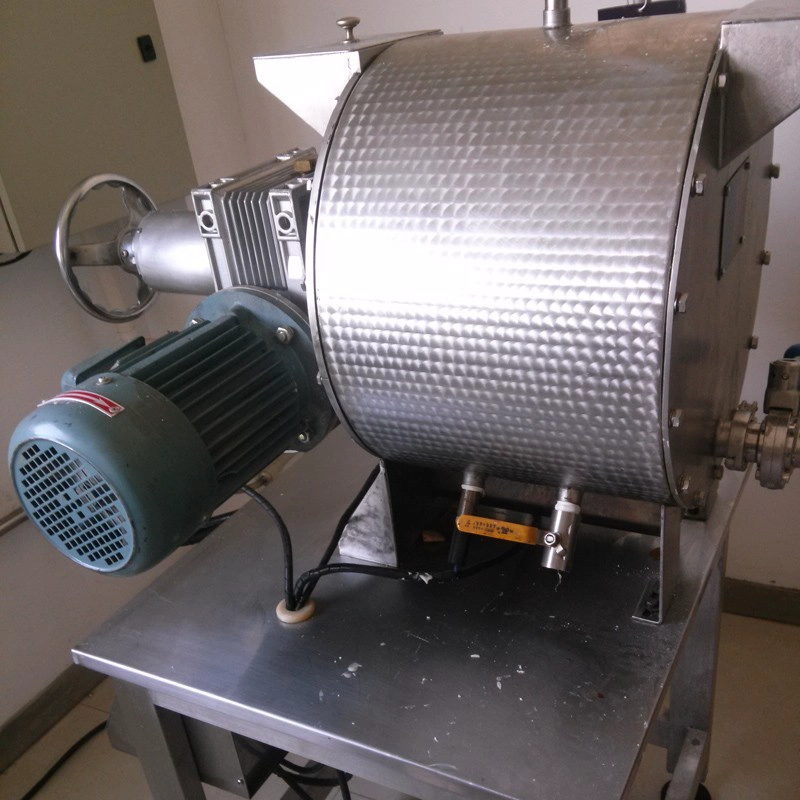

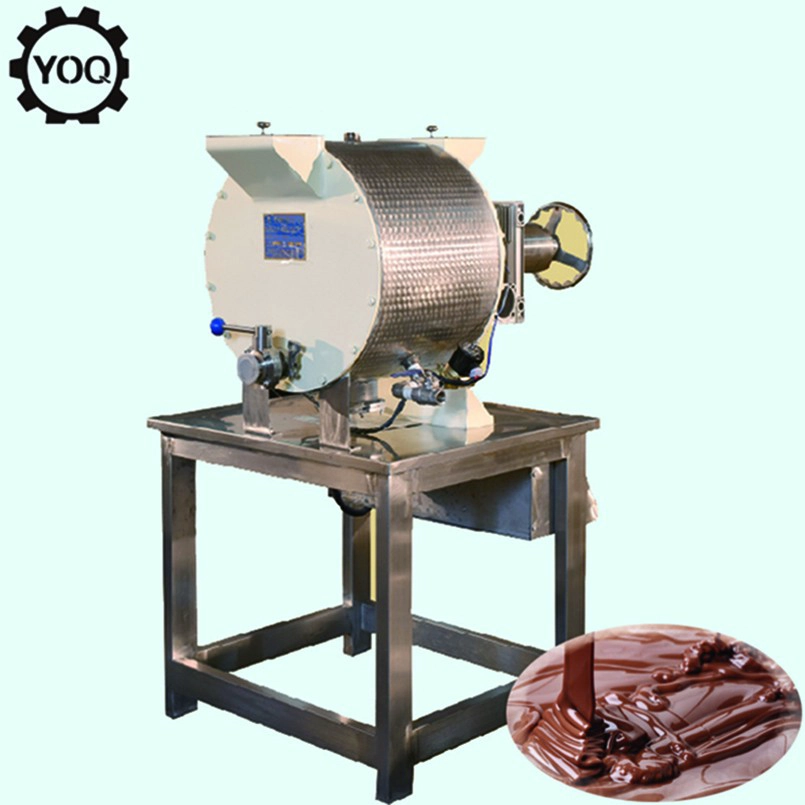

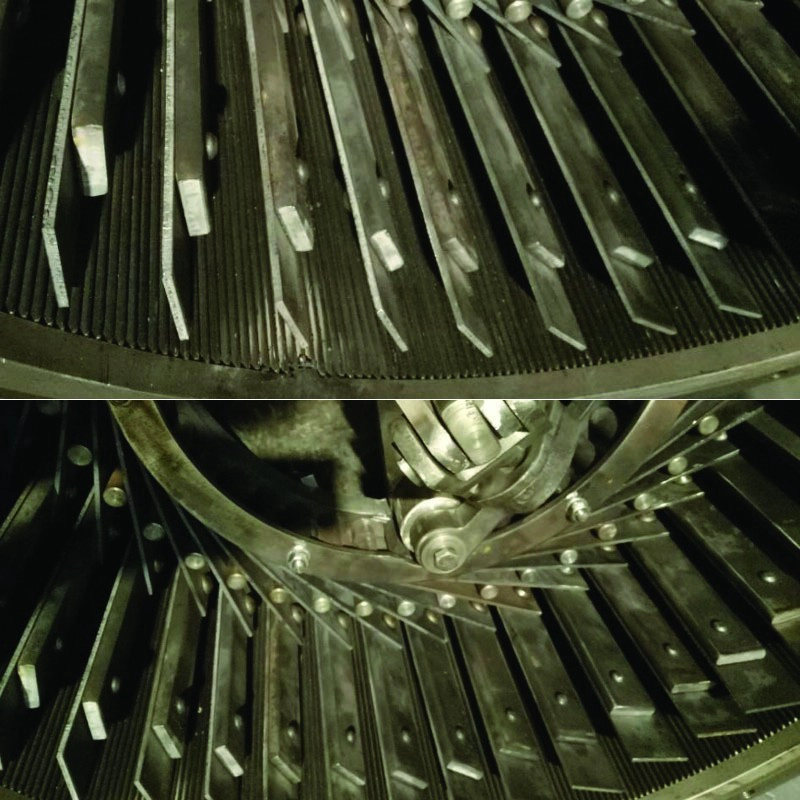

Details:



Factory:



Certification:



Clients visit:



YOQ CHOCOLATE MACHINERY SUPPLIER.

Tel:+8615852951193

Contact Person:Inna
