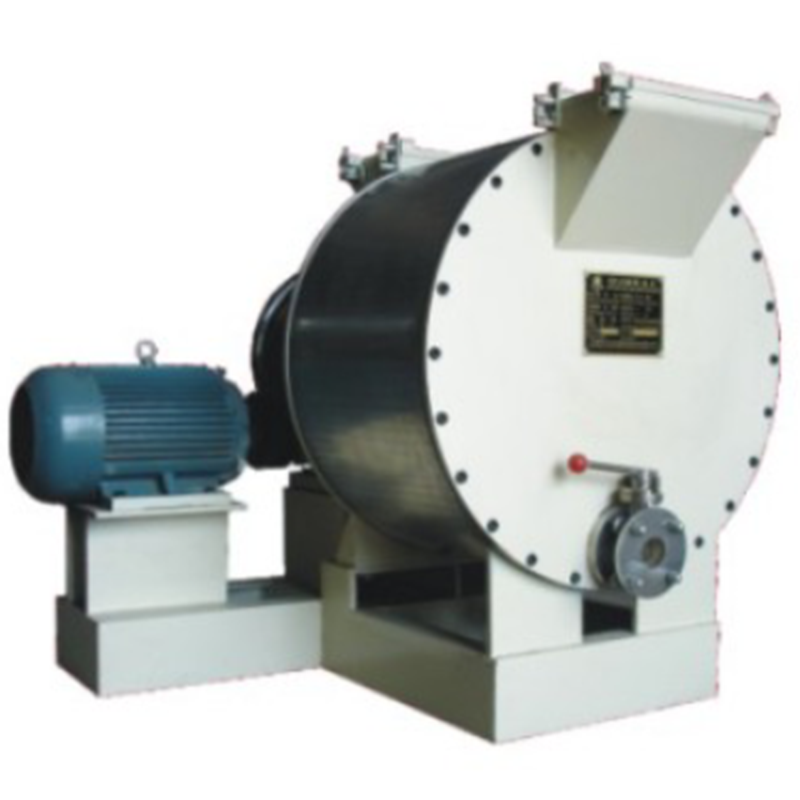

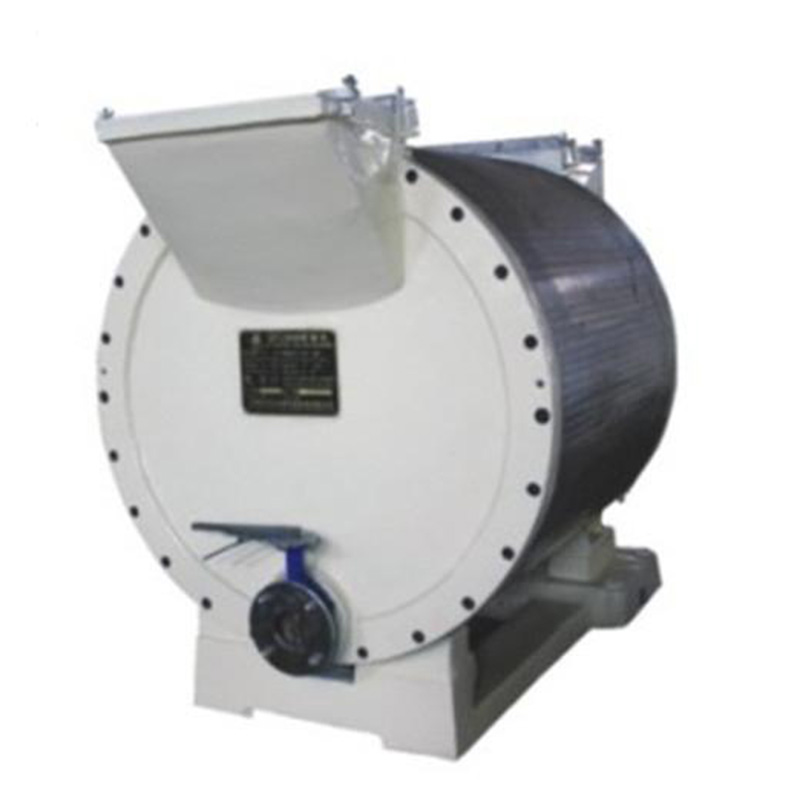

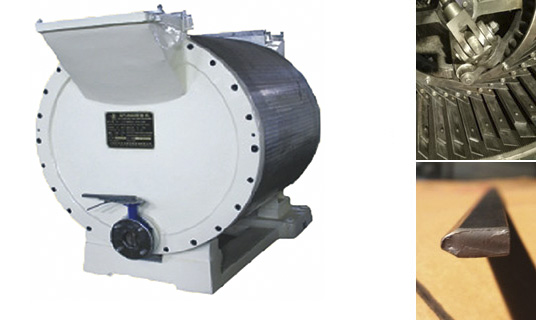

500L Chocolate Grinding Machine

  • Min.Order Quantity: 1 Set/Sets
  • Supply Ability: 50 Set/Sets per month
  • Port: ShangHai
  • Place of Origin: Suzhou, China
  • Payment Terms: L/C,T/T,Western Union
  • The machine can be made UL standard
Product Description

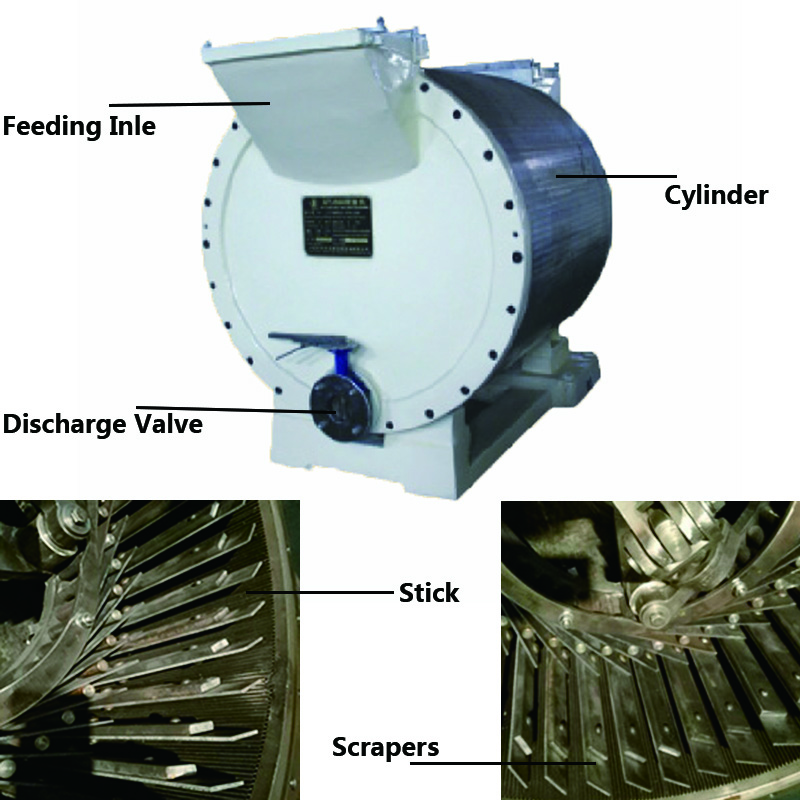

This chocolate conching machine adopts the worm wheel and worm screw driving system, the places contacting with food and the conche machine outer case are made of excellent alloy steel and stainless steel material

Technical Parameters

Model

Project

20L

100L

500L

1000L

3000L

Maximum capacity(L)

20

100

500

1500

3000

Grinding Fineness(micron)

20~25

20~25

20~25

20~25

20~25

Main Axle Rotating Speed(rpm)

93

48

33

35

35

Grinding time(h)

8~10

12~16

16~22

16~22

16~22

Main motor power(kw)

1.5

5.5

15

30

45

Electrical heating power(kw)

0.6

2.5

5

6

12

Weight(kg)

295

1050

2572

4850

7500

Outside dimensions(mm)

920×600×1110

1200×1150×1050

2000×1860×1280

2918×1650×1920

3450×2016×2280


Packaging & Delivery
Packaging Details: wooden box or pallet or carton box according to requirement for 500l chocolate conche
Delivery Detail: 45days
