double jacketed chocolate conche machine stainless steel chocolate making machinedouble jacketed chocolate conche machine stainless steel chocolate making machinedouble jacketed chocolate conche machine stainless steel chocolate making machine

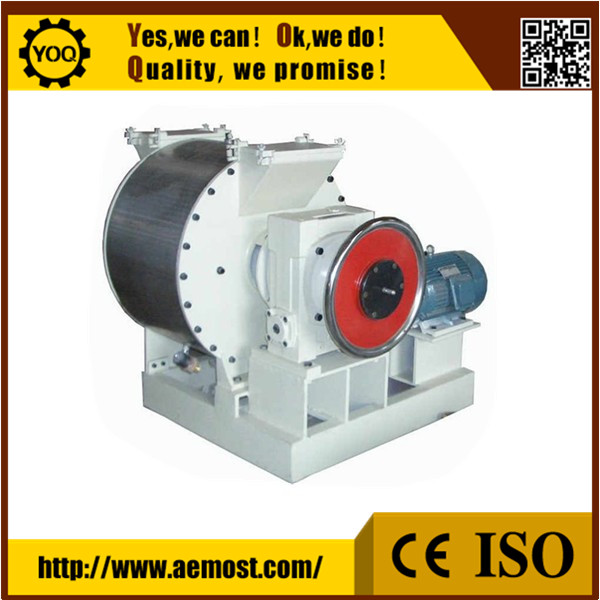

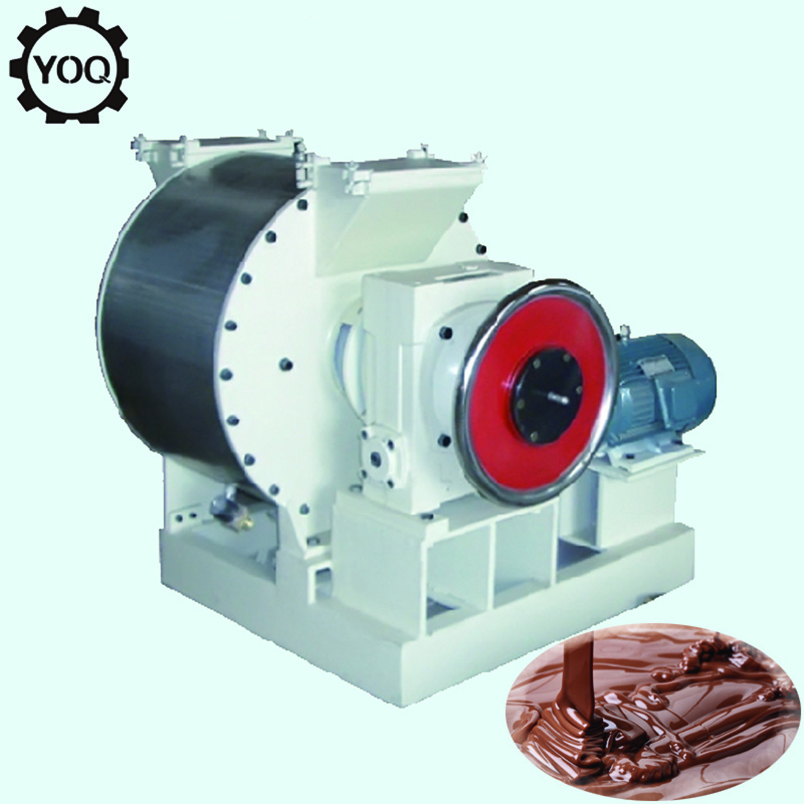

double jacketed chocolate conche machine stainless steel chocolate making machine

  • Model: 100L
  • Maximum capacity(L): 100
  • Grinding fineness(micron): 20-25
  • Main axle rotating speed(rpm): 48
  • Grinding time(h): 12-16
  • Main motor power(kw): 5.5
  • Electrical heating power(kw): 2.5
  • Weight(kg): 1050
  • Outside dimensions(mm): 1200*1150*1050
  • Min.Order Quantity: 1 Set/Sets
  • Supply Ability: 50 Set/Sets per month
  • Port: Shanghai
  • Place of Origin: Suzhou, China
  • Payment Terms: L/C,T/T,Western Union
  • The machine can be made UL standard

Technical Parameters:

Model 100L Chocolate Conche
Maximum capacity (L) 100
Grinding fitness (micron) 20-25
Main axle rotating speed (rpm) 48
Grinding time (h) 12-16
Main motor power (kw) 5.5
Electrical heating power (kw) 2.5
Weight (kg) 1050
Outside dimension (mm) 1200*1150*1050

Function:
Chocolate conche is used in fine grinding of chocolate mass, it is the main equipment in chocolate production line.The outside material is full stainless steel. the whole machine is designed with double jacketed which allow cool water circulate, prevent the high temperature burned the chocolate.
QYJ 100 chocolate conche machine is easy to operate and move, and it does not take too much space. It is ideal machine for lab or small factory."

Packaging & Delivery:
1. The machine will be packed in a wooden case, avoiding unexpected damage.
2. The machine will be shipped from Shanghai port.

Service:

1. Along with the separate machines, our company also has an ability to deliver integrated solutions for the manufacture of the chocolate product.
2. Engineers are available for traveling to the customer's site overseas, in order to launch and maintain machines, as well as to provide a team training at the customer's location.

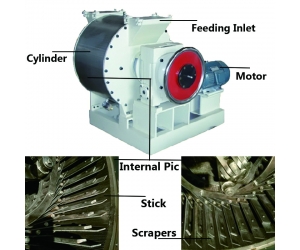

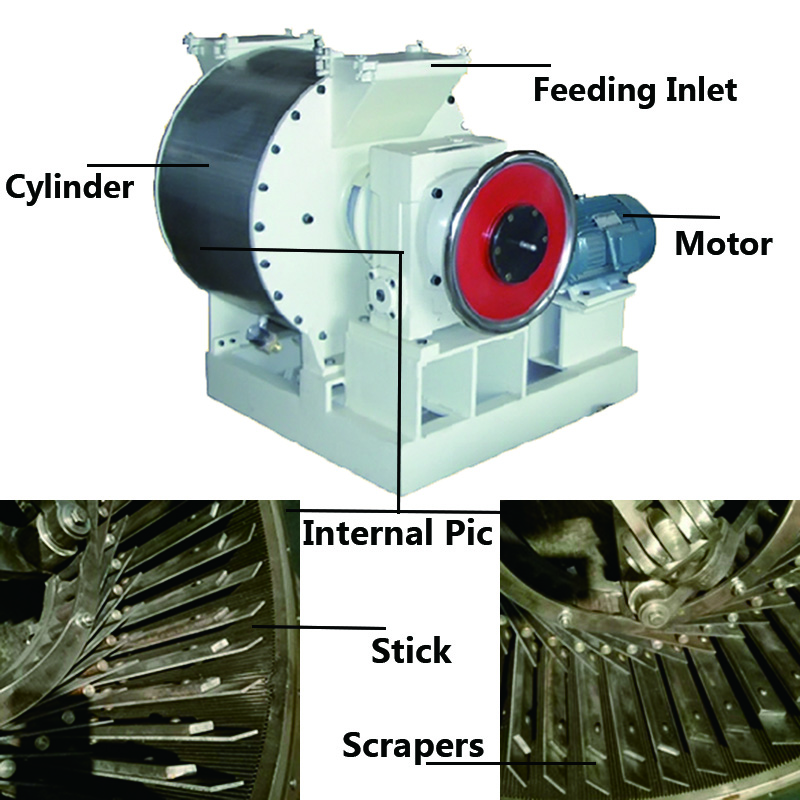

Details:

Factory:



Certifications:


Clients Visit:


YOQ CHOCOLATE MACHINERY SUPPLIER.

Tel:+8618260139499

Contact Person:Flora
