Automatic Chocolate Forming Production LineAutomatic Chocolate Forming Production LineAutomatic Chocolate Forming Production Line

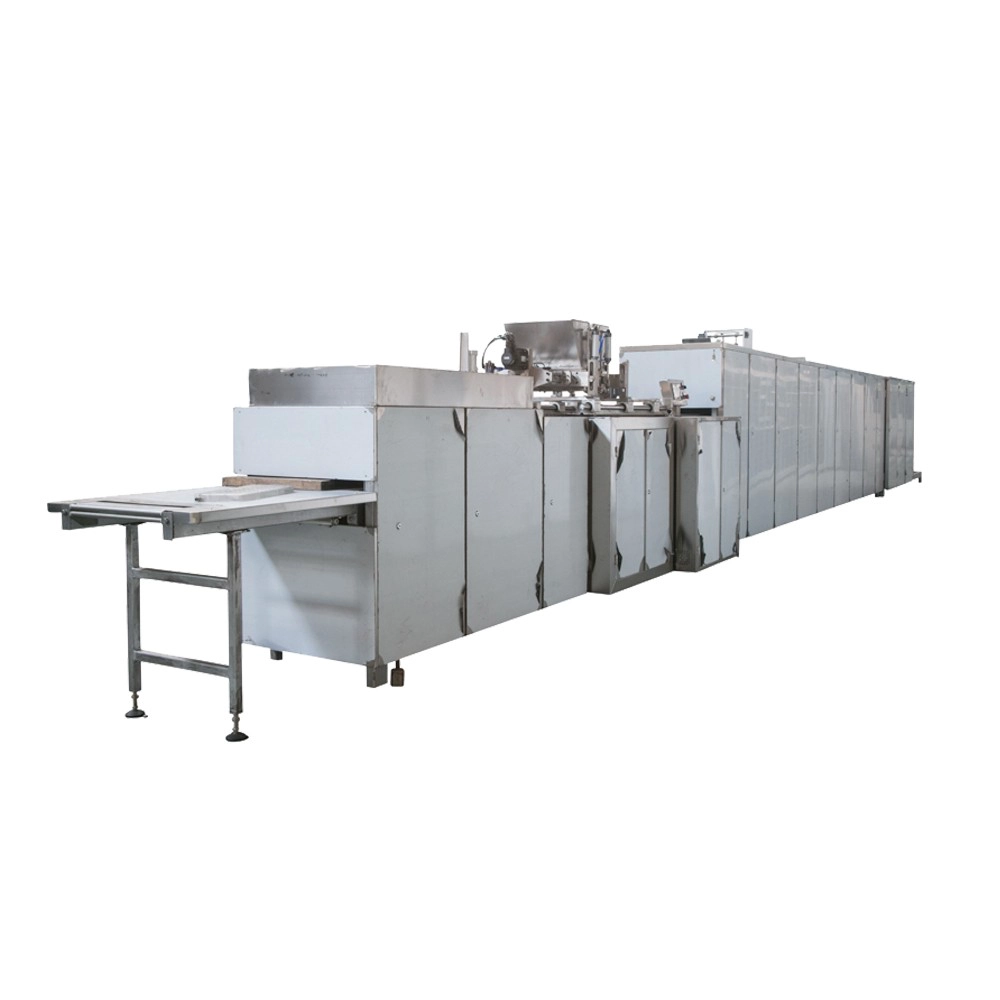

Automatic Chocolate Forming Production Line

  • Min.Order Quantity:1 Set/Sets
  • Supply Ability:10 Set/Sets per month
  • Port:Shanghai
  • Place Of Origin:Suzhou,China
  • Payment Terms:L/C,T/T,Western Union

Technical Parameters:

 Model  Q111
 Capacity(ton/class)  0.8-2.5
 Total power(kw)  21
 Refrigeration capacity(kcal/h)  21800
 Mould plate size(mm)  280*200*30
 Mould plate quantity(each)  270
 Weight(kg)  4800
 Outside dimensions(mm)  17010*1010*1330

The moulding line is for chocolate deposit forming.

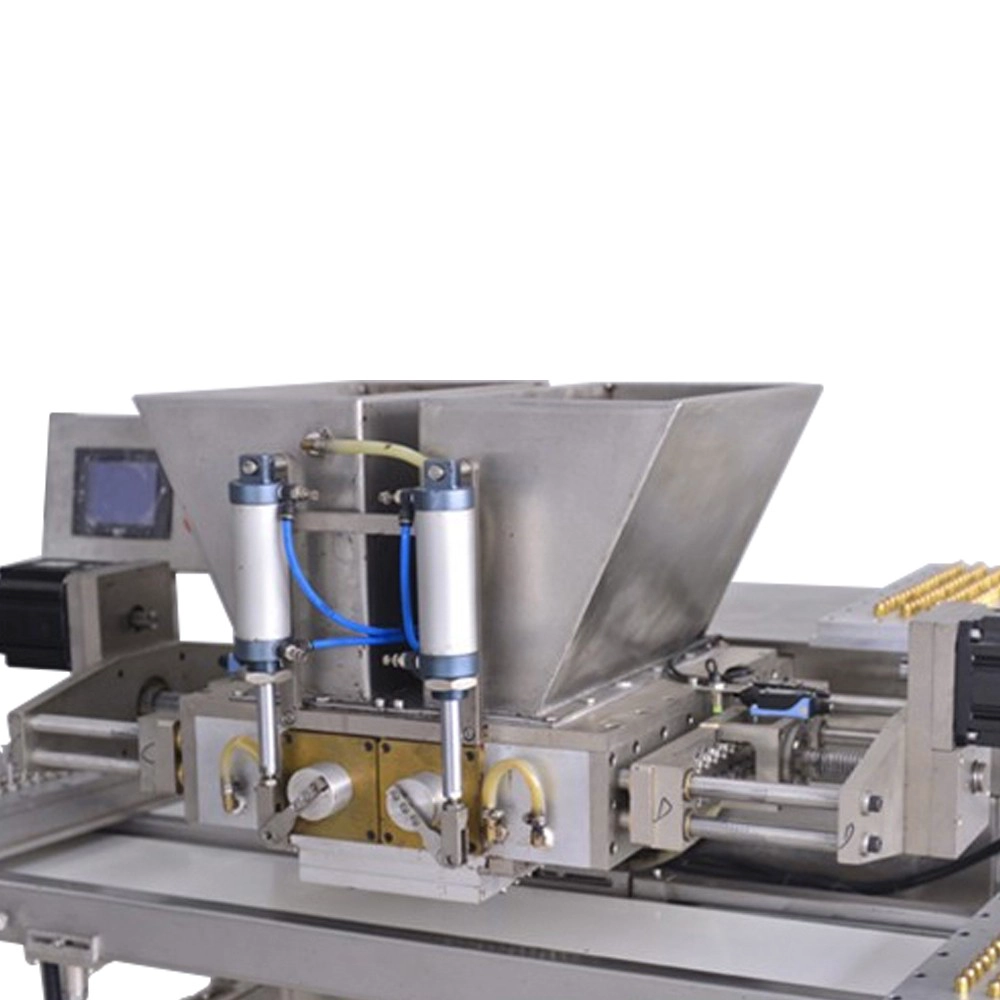

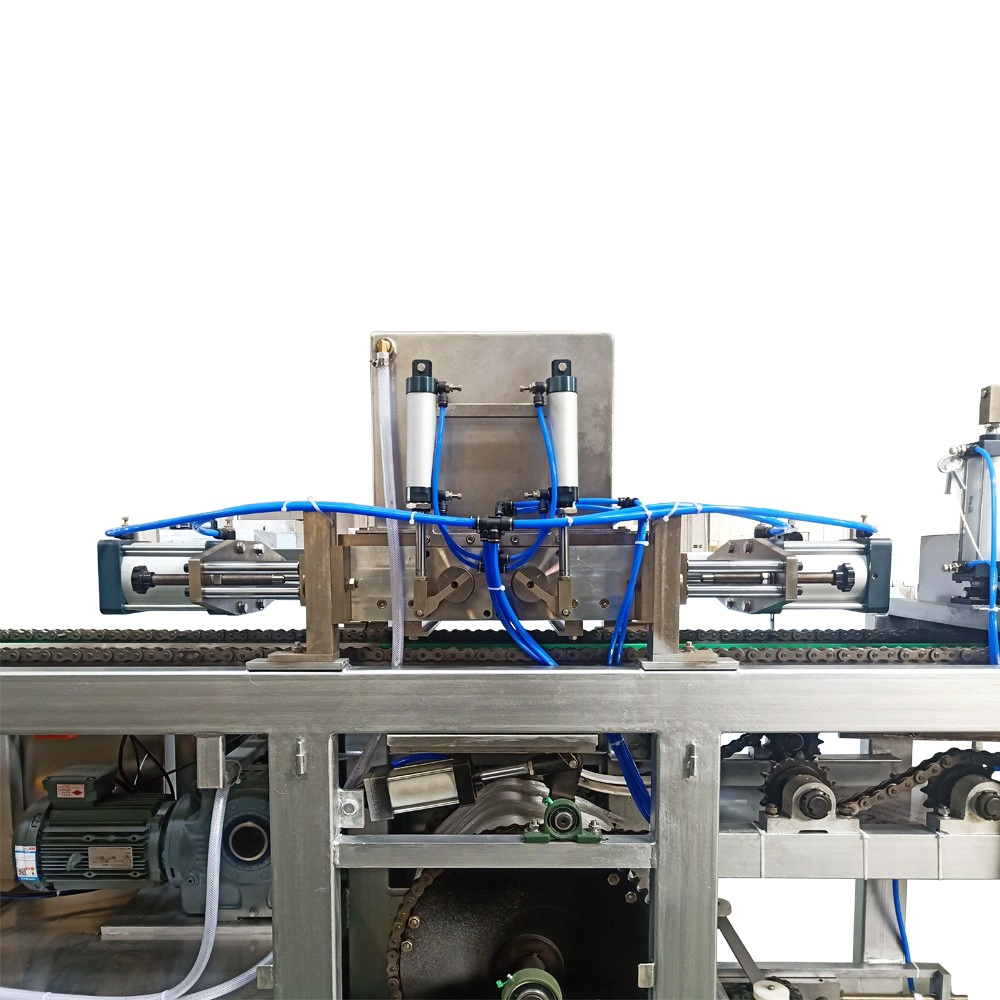

The whole process is fully automatic including depositing, mould pate vibrating, cooling,demoulding, conveying and plate heating.
You can choose one head semi-automaitic, one head, two heads or three heads moulding line for different products.
The line is suitable for pure chocolate, center filled chocolate, two colors chocolate, four colors chocolate, amber or agate chocolate,etc.

1. Along with the separate machines, our company also has an ability to deliver integrated solutions

 for the manufacture of the chocolate product.
2. Engineers are available for traveling to the customer's site overseas,

 in order to launch and maintain machines, as well as to provide a team training at the customer's location.
